600TVL NTSC Camera module

[last updated: 2021-05-07]
go to: camera modules
-----

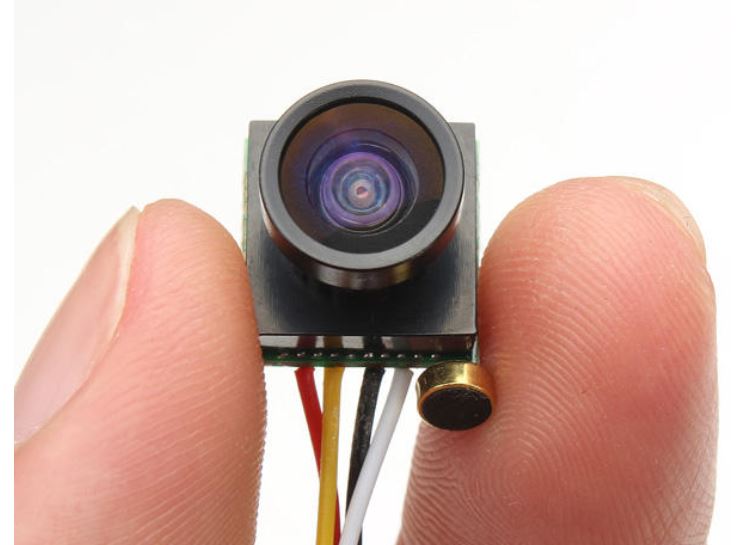

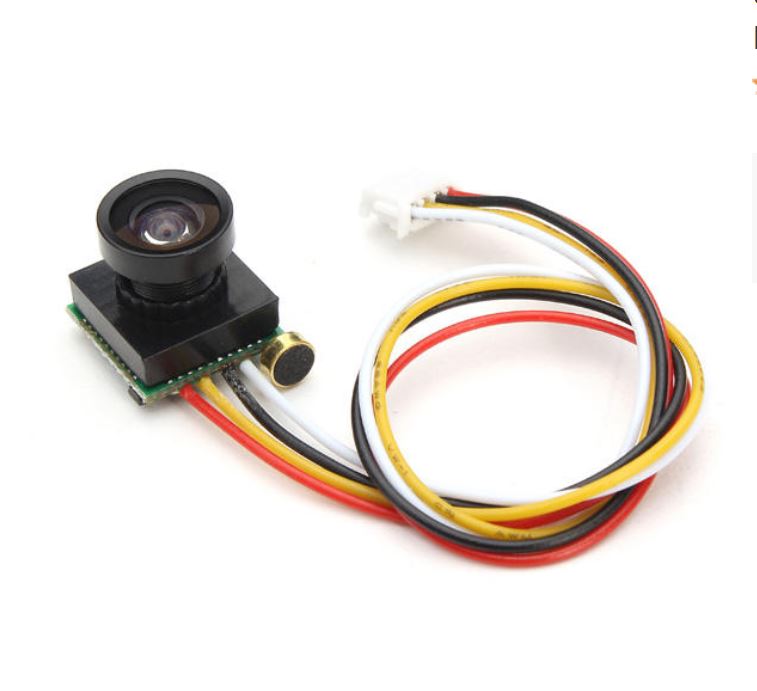

• 600TVL 1/4 2.8mm CMOS FPV 170 Degree Wide Angle Lens Camera PAL/NTSC





  BangGood SKU251677
  600TVL camera notes:
  -----




  Description:
  Resolution: 1280 * 960
  Resolution: 600TVL
  Camera Dimensions: 12.5mm * 12.5mm * 17mm
  Illumination: 0.5LUX
  Format:PAL / NTSC
  Power supply range: 3.7-5V 100mA
  Audio Lens: Wide-angle 1.8mm (170 degree)
  Image sensor:1/4 CMOS image sensor
  Sensitive area: 3.5964mm x 2.7084mm
  648 pixels (horizontal) × 488 (vertical) 648 (horizontal) × 488 (vertical)
  Scanning Frequency Horizontal: 15.625KHz
  Vertical: 50Hz
  level: 15.7343KHz
  Vertical: 60Hz
  Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
  SNR =48dB (AGC OFF)
  Minimum illumination : 0.1 Lux / F1.2
  Composite video signal :1.0Vp-p 75O
  Standard Lens :1.8 mm
  Specifications PCB: 20mm*20mm
  Power: DC5V ± 10% 70mA ± 10%
  Operating temperature :-10 ? ~ 60 ? RH95% Max

  Note: It only supports 3.7-5V voltage , the manual book 5-12V voltage is wrong .

.

.

.
