LM358 module - 11066

[last updated: 2017-10-05]
-----

LM358 weak-signal amplifier module

PN: 11066 from ICStation (no longer available)

LM358 module

LM358 module - note error

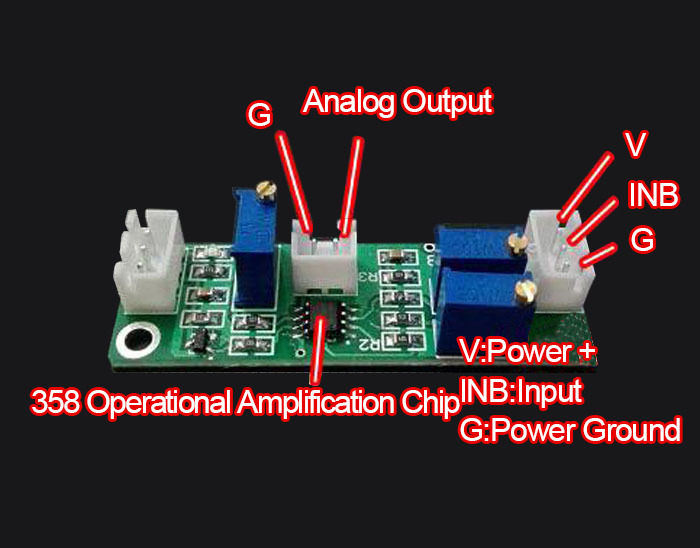

Note: There appears to be an error, either on the image or on the board itself. On the image, on the end connector closest to the two pots, V is shown as the right pin. However on the board I have, V is labeled on the left.

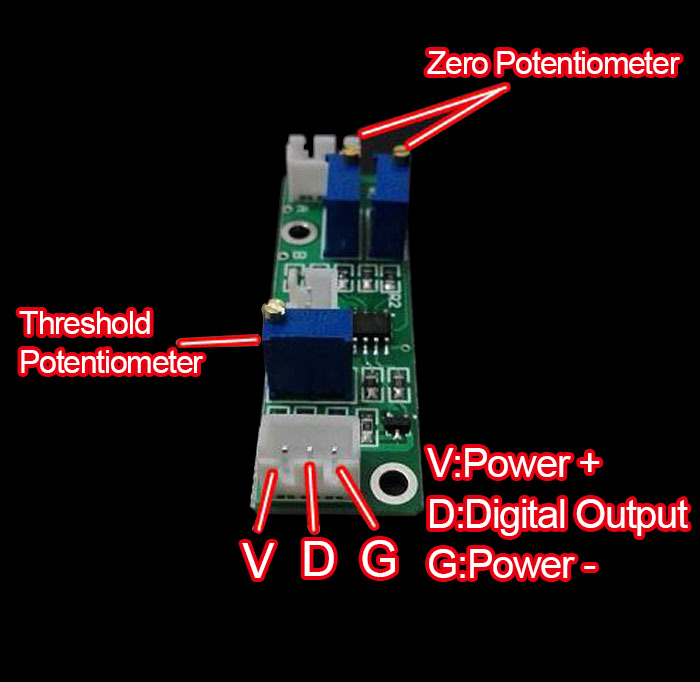

Also, in the other image, the two stacked pots are both labeled as "Zero," but one of them clearly must be 'Gain'.
---------------------------------------

Specs:
Vcc: 3 - 5vdc
gain: up to 100x

Operation:
One end of the board has a 3-pin connector labeled V - D - G. The image annotation says the 'D' is a digital output. Presumably this goes active when the signal exceeds some value as set by the threshhold pot.

.

.

.

eof
