MCP602 Instrumentation Amp

[last updated: 2020-12-05]
-----

MCP602 module from ICStation PN: 11067
(2017 update: part & documentation no longer available)

Note to self: When you order something like this from China, save all the online documentation available at the time you buy it, because later it might not be available.

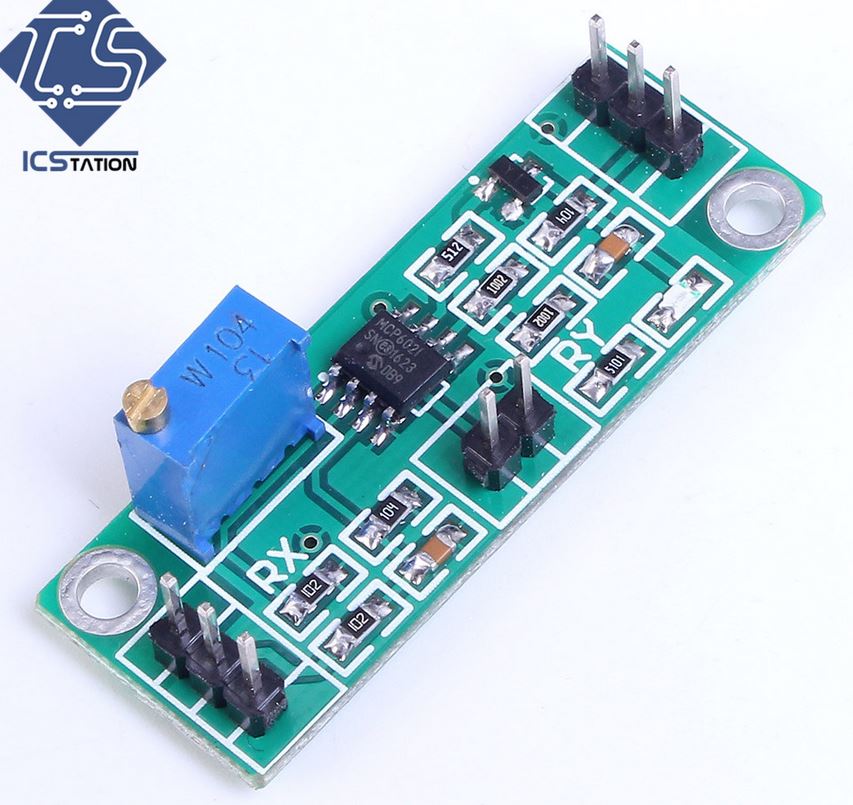

MCP602 module

MCP602 module

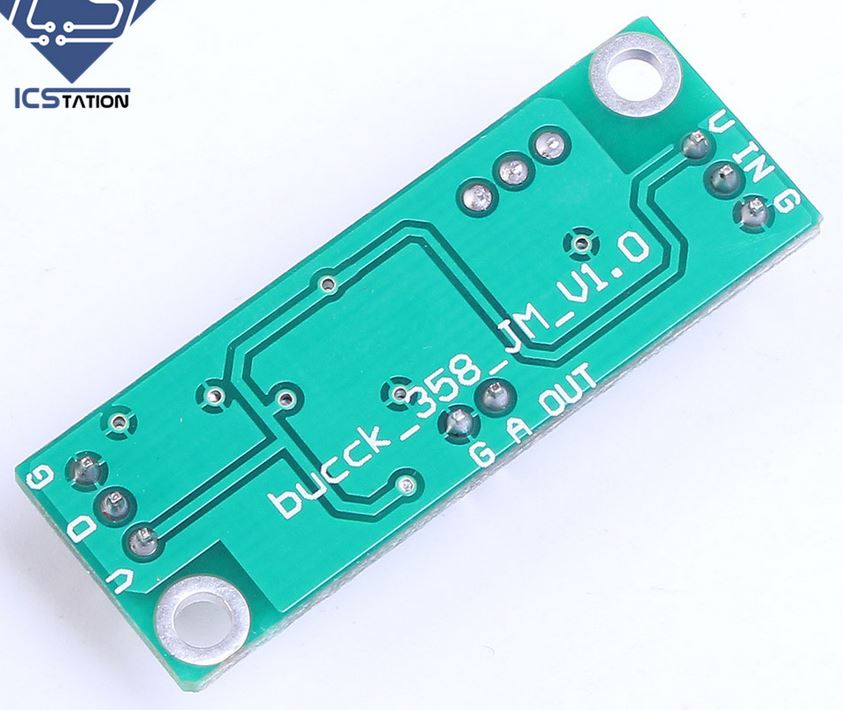

MCP602 module bottom

From mfr & online searching:

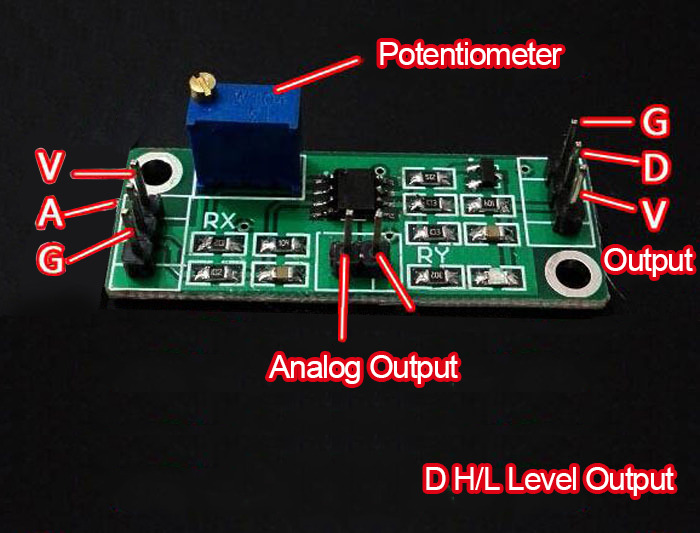

• The pin marked 'A' in the picture is the input
• Single supply voltage: 2.8 - 5vdc (recommended to keep it at 3v or above)
• Single-ended input
• Board Size: 44 x 16mm
• Mounting hole spacing: 39.5mm

From breadboarding, here's what I've learned:

• "V" pins on opposite ends of the board are tied together
  same with "G" pins
• The pot is gain. CCW is more gain. Max gain appears to be about x90
• There is an onboard green LED that lights up when output exceeds about 2.6v.
  This seems to be a pre-set threshold
• With 60mv input, and gain set at max, output in Vcc=5.3vdc (on my breadboard)
• Gain adj seems to be 25-turn

--------------------------------------

See: Circuit Tests using MCP602 with Piezo Film

.
