50kg Bathroom Scale Load Cell

[last updated: 2019-02-03]
go to: 3d printing home page
go to: Strength of printed parts
go to: Measuring strength of printed parts
-----

bathroomScale type load cell

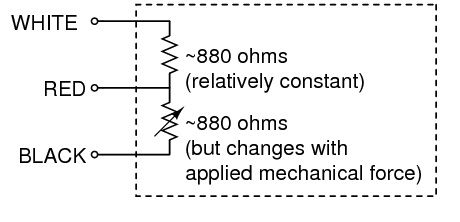

bathroom scale load cell Schematic
• These load cells are listed as "half-bridges." However in fact they only have 1 strain gauge in them, but they have a passive resistor that can be wired as a dummy leg of a Wheatstone bridge, so that one, two, or four of these load cells can be configured in a full-bridge configuration.
• Connection options:
• 1 load cell:


bathroom scale 1-cell configuration

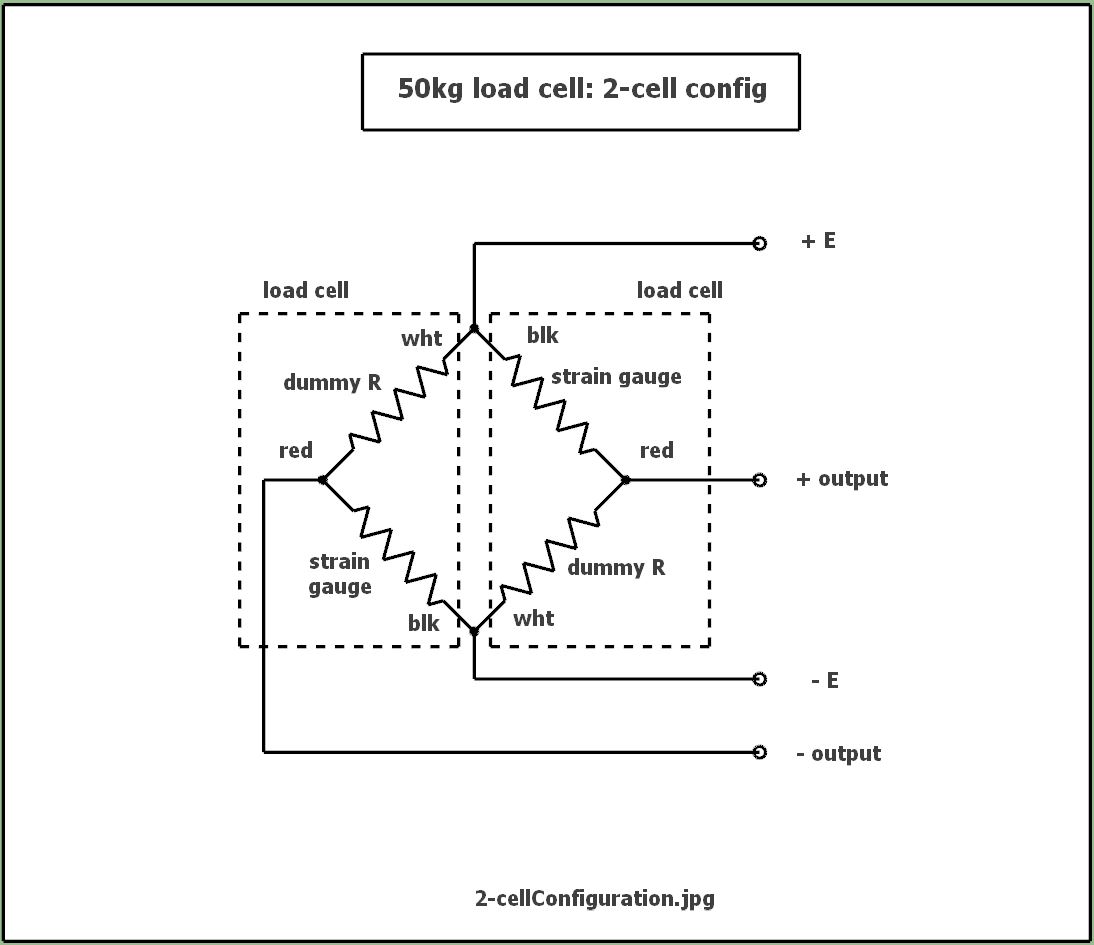

bathroom scale 2-cell configuration
• 2 load cells:

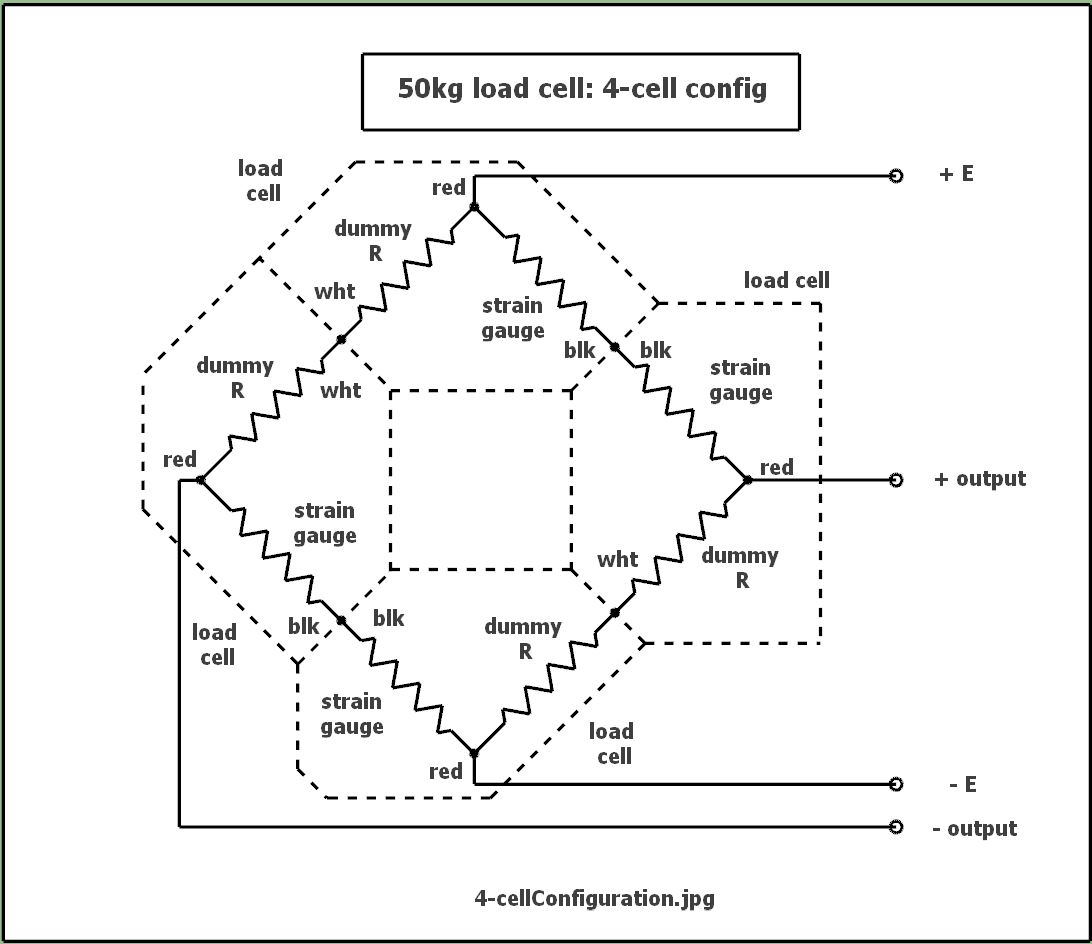

• 4 load cells


bathroom scale 4-cell configuration

.

.

.

eof
