FONA-2.5

[last updated: 2020-03-04]
go to: FONA home page
go to: FONA-2 project page
go to: FONA-3 project page
-----

• This is an interim project configuration, between FONA-2, which uses Mega & Nano, and FONA-3, which will have two Teensy's.
• This step, FONA-2.5, will keep the Mega, but will replace the basement monitor Nano with a Teensy
• Teensy Basement Monitor currently running program: bsMon-01a
  and the Mega is running MegaFONA06g, same as the FONA-2

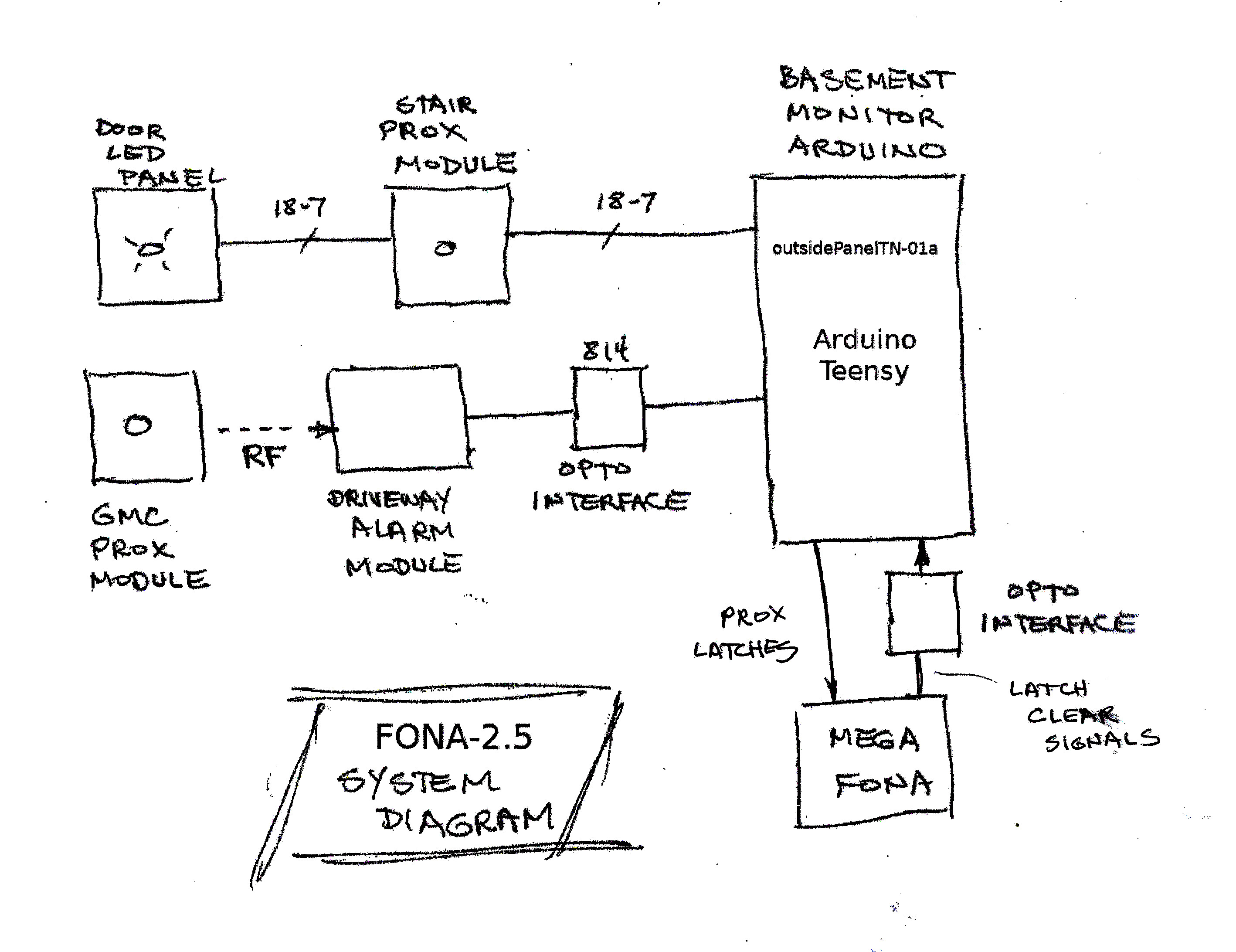

  FONA-2.5 System Diagram



  Door LED Panel (from FONA-2 )



  Stair Prox module (from FONA-2 )



  Stair Prox to BsMon (from FONA-2 )

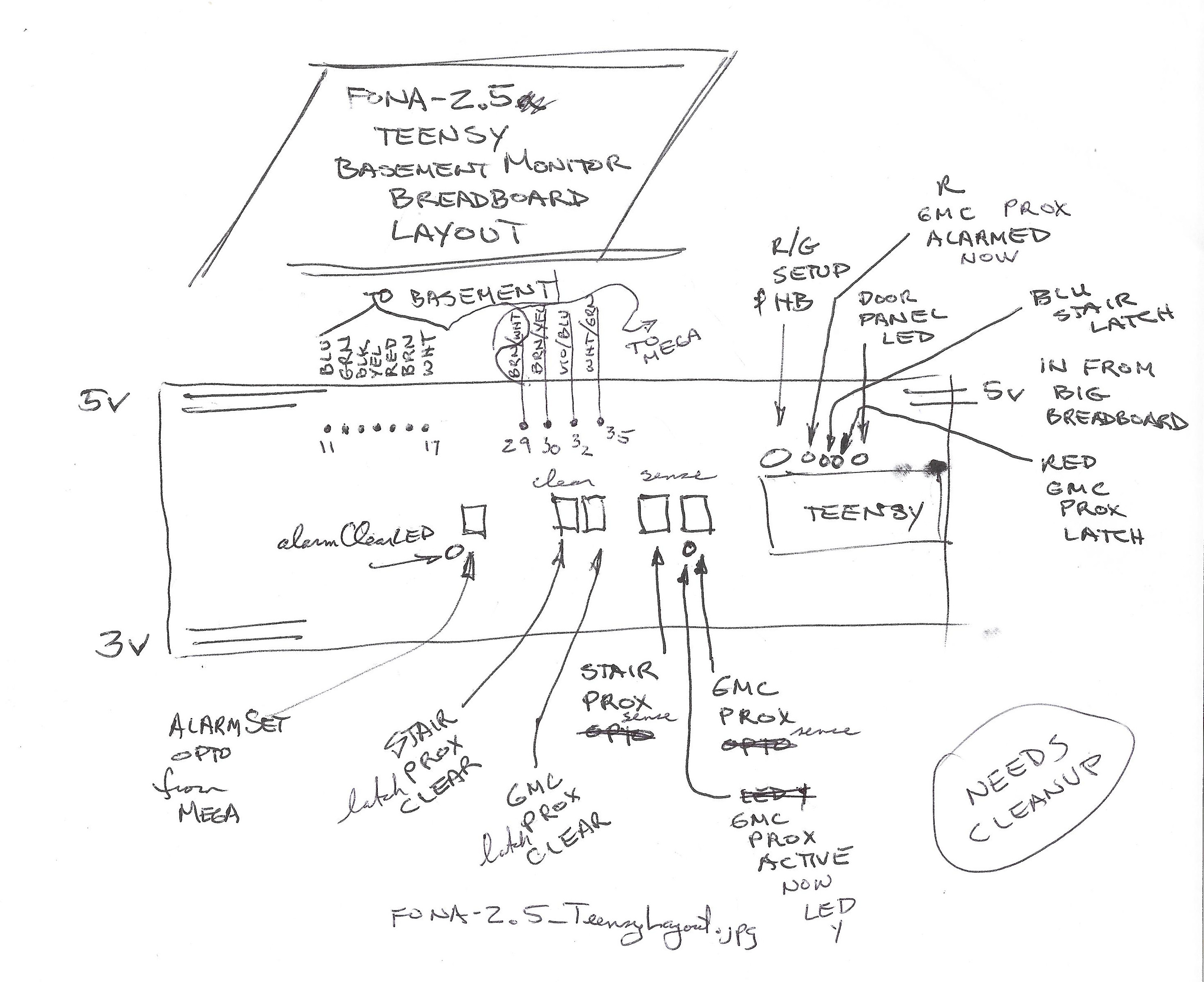

  FONA-2.5 Teensy layout



  FONA-2.5 Stair Prox Sense

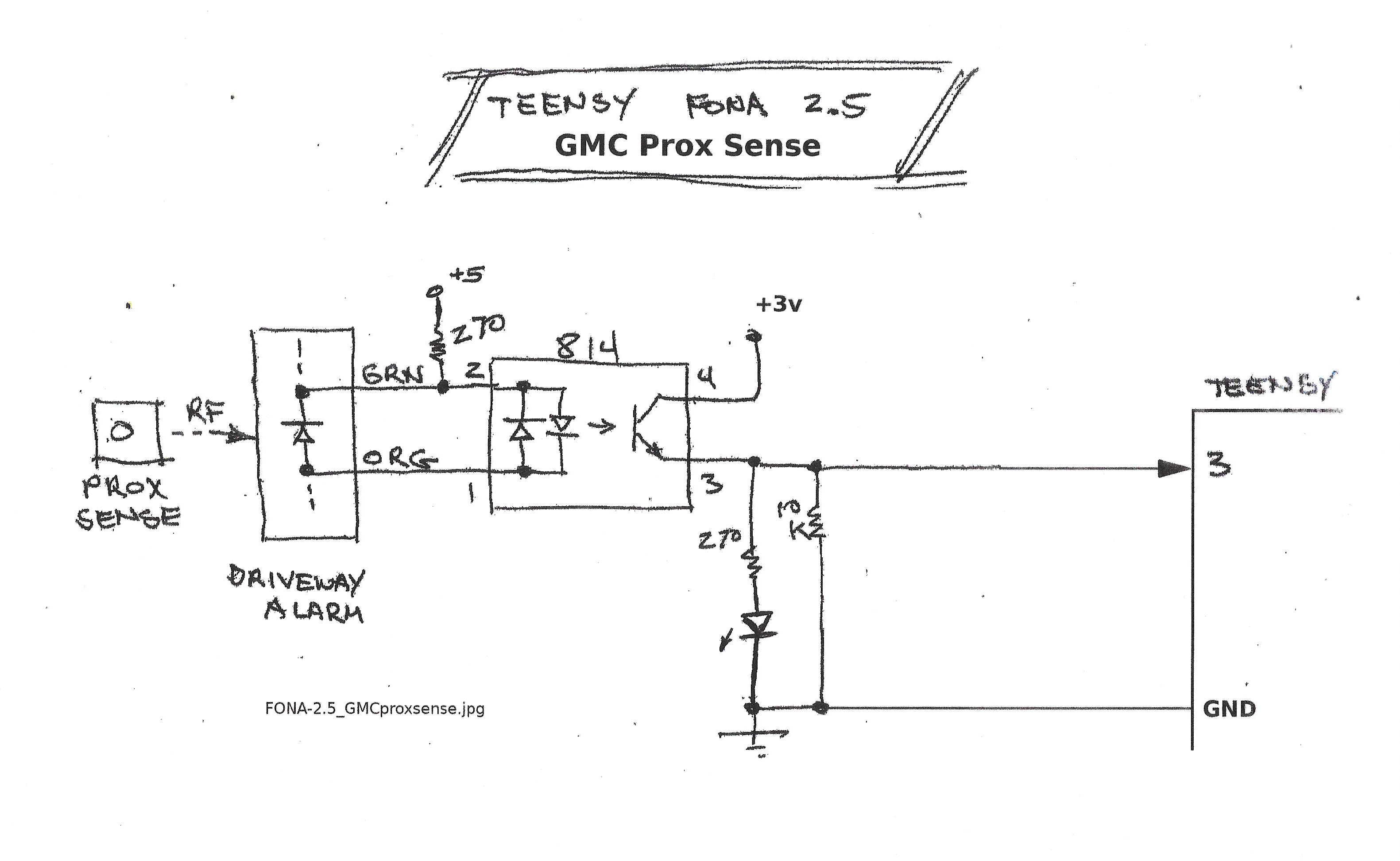

  FONA-2.5 GMC Prox Sense

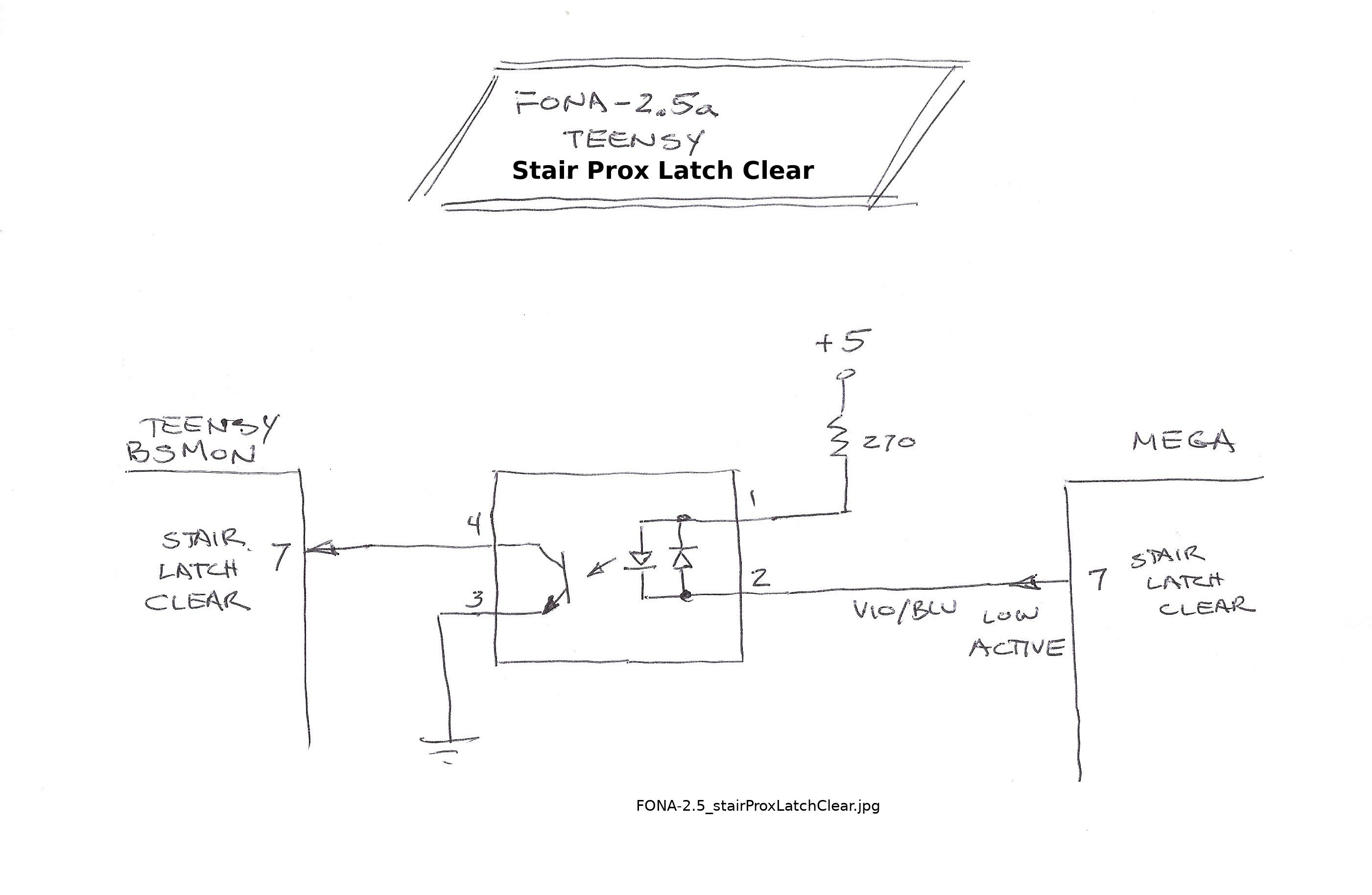

  FONA-2.5 Stair Prox Latch Clear

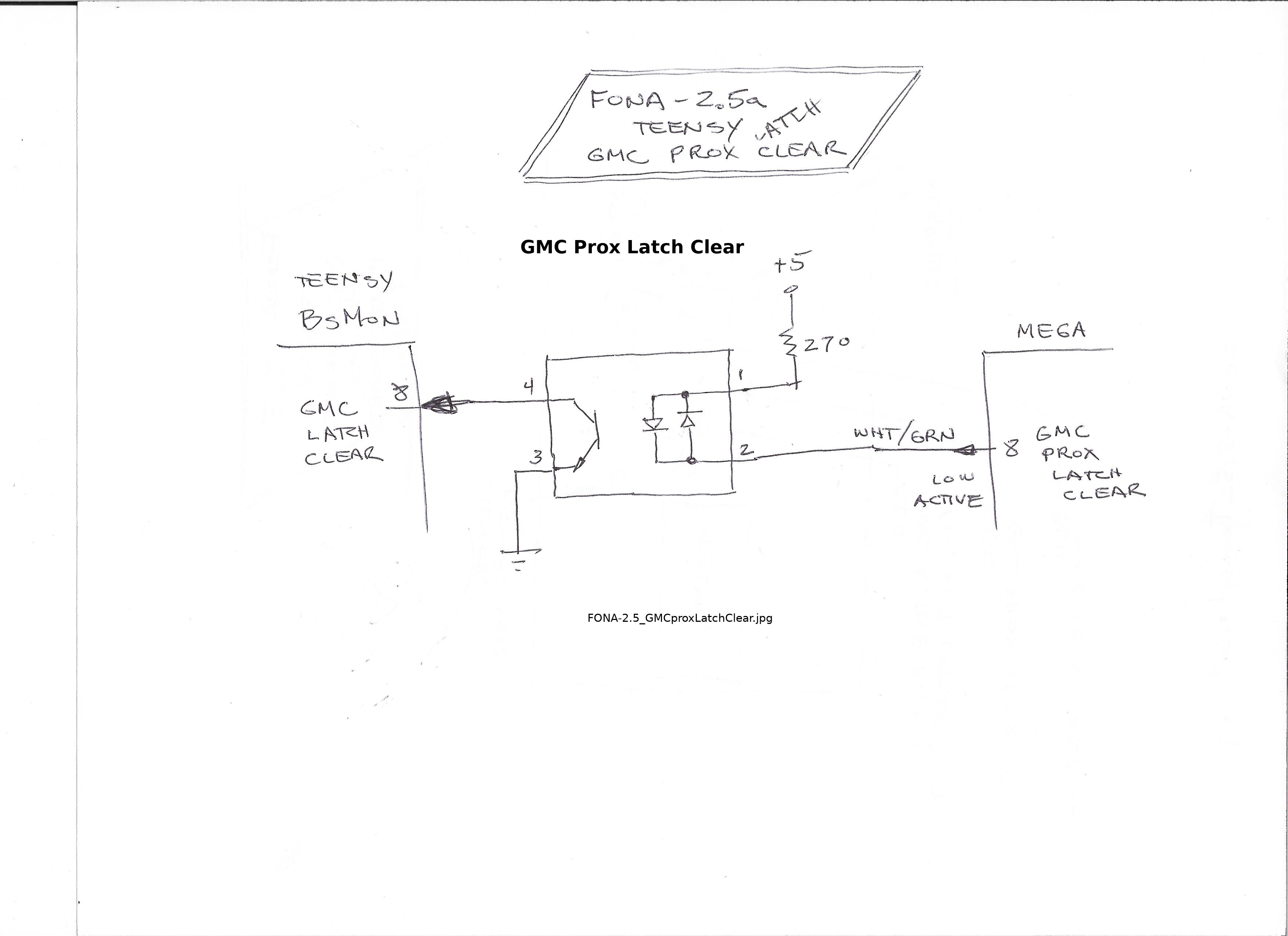

  FONA-2.5 GMC Prox Latch Clear

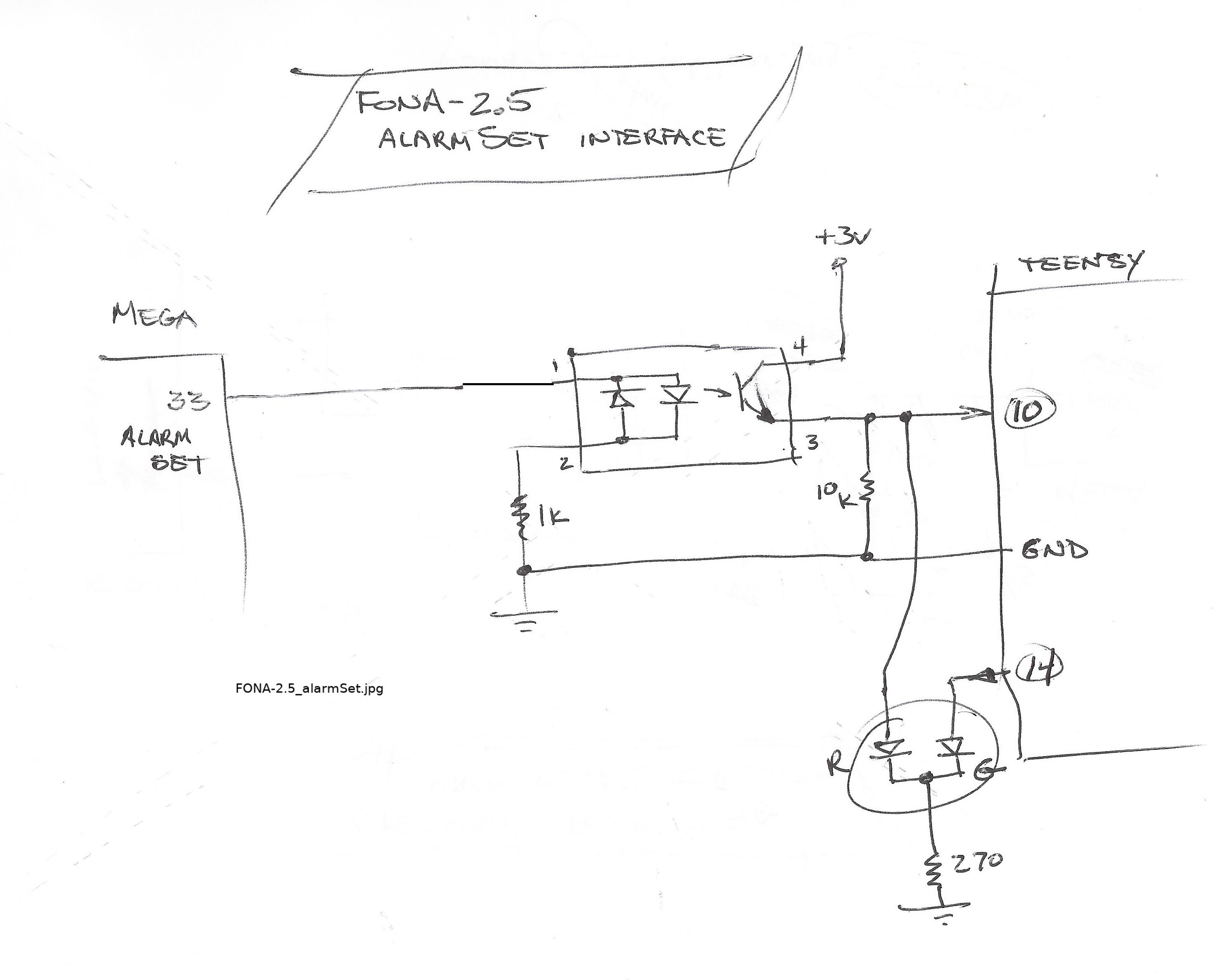

  FONA-2.5 Alarm Set

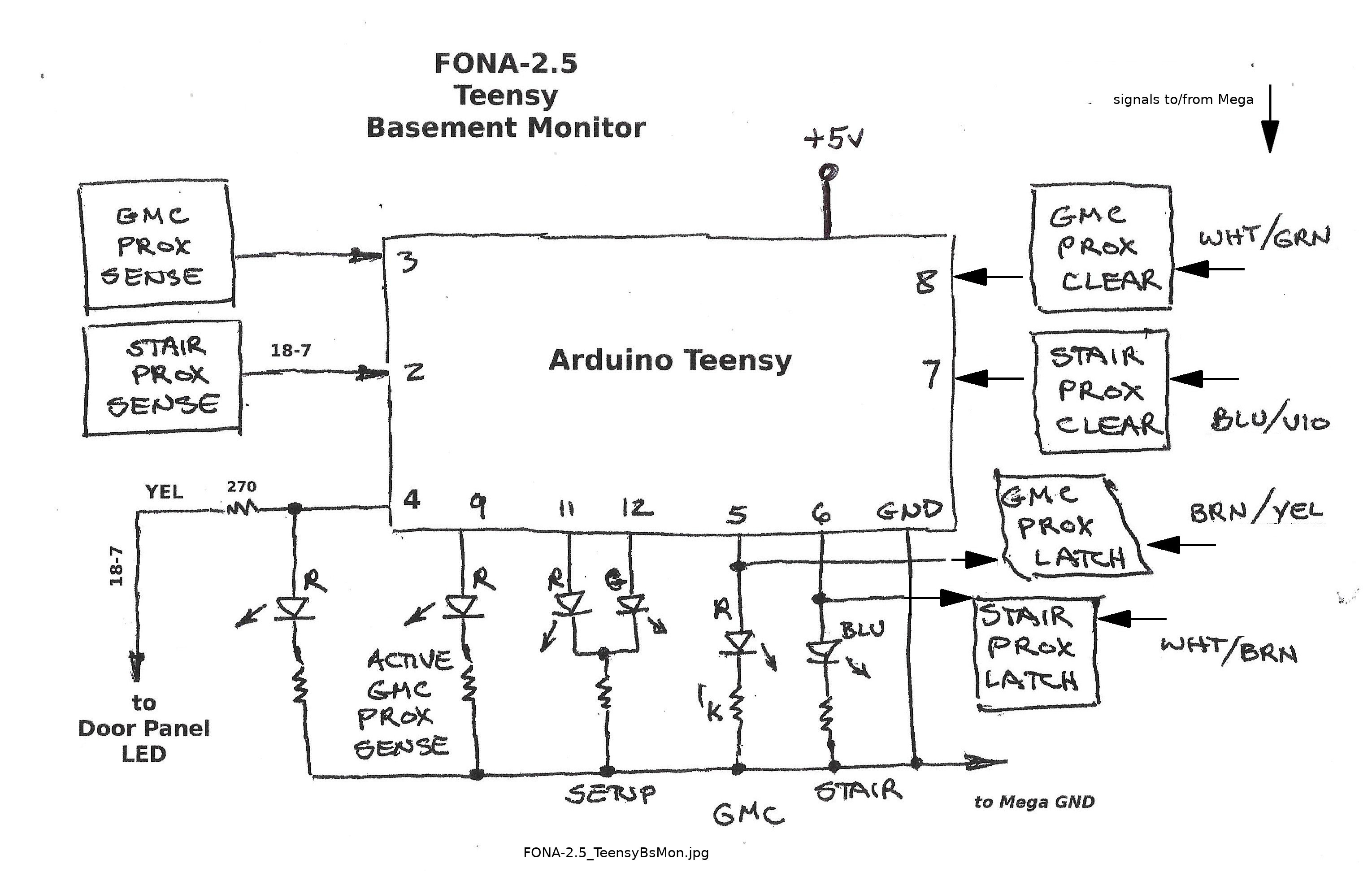

  FONA-2.5 Teensy Basement Monitor

.

.

.

eof
