Pressure Sensors

[last updated: 2022-08-02]
go to: ...
-----

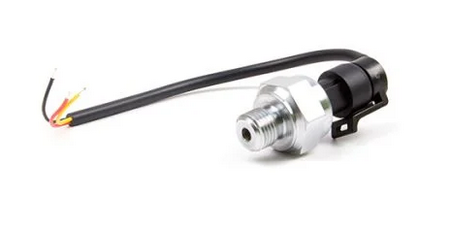

• G1/4 1.2MPa Seeed 114991178
  • https://www.seeedstudio.com/Water-Pressure-Sensor-G1-4-1-2MPa-p-2887.htm...
  •

  • red wire to +5v dc
    blk wire to gnd
    yel wire analog output

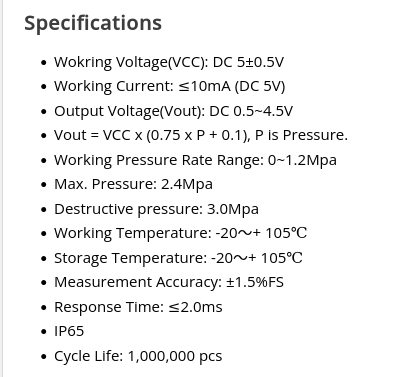

  • P_{(in MPa)} = ( (V_out / 5) - 0.1 ) * (4/3)
    1MPa = 145 psi

  • 35 psi/V

.

.

.

eof
