RF-Nano

[last updated: 2021-04-07]

nRF24 Home Page
-----

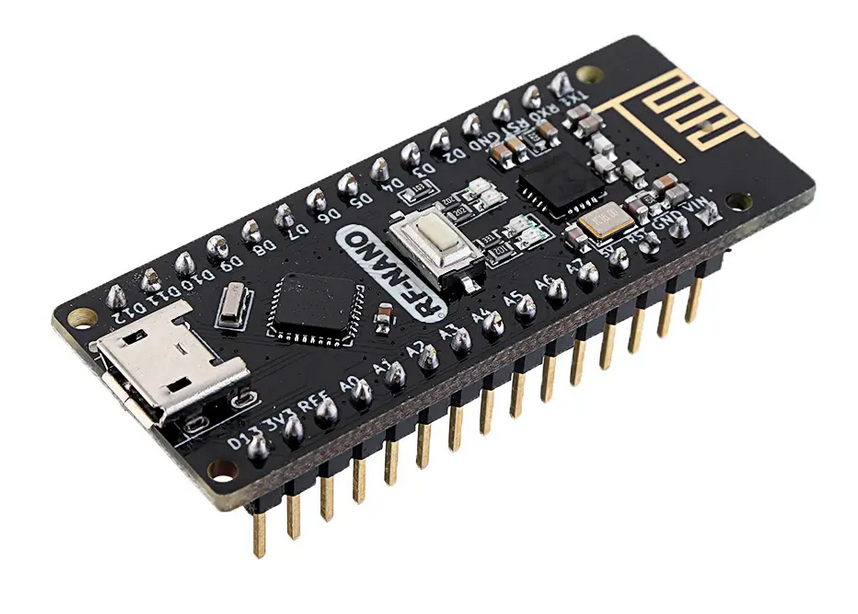

The RF-Nano is an Arduino Nano with an nRF24 module added to the board
Current Status:
Demo programs successfully loaded from rf-nano-master.zip
Both programs compile and execute without errors.
Transmit node sends println's to serial monitor showing data being transmitted,
however Receive node does not hear anything...
As of 2021-04-07 i have not been able to get communication to work,
whether I use CE = 9 or 10...
CE/CSN Confusion:

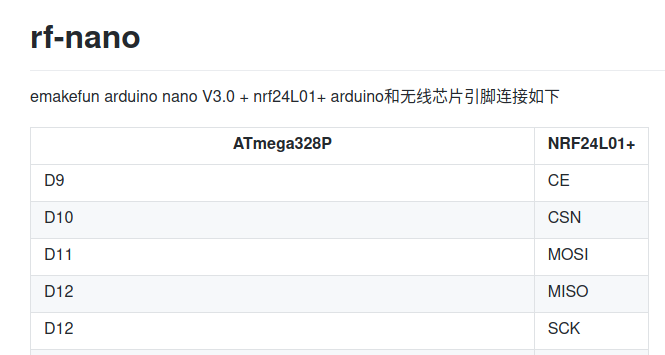

- The table shown above, which came from githug emakefun page, shows:
  CE = 9 CSN = 10
- The demo program in the rf-nano-master.zip has the init line:
  RF24 myRadio(9, 10);
- My previous programs with nRF24 use init line:
  RF24 radio(CEpin, CSNpin);
- The pdf here (rf-nano vers. 2.0 dated 2021-01-07):
  https://github.com/emakefun/rf-nano/blob/master/RF-Nano-Schematic.pdf
  shows:
  CE = 9 CSN = 10

  So these are all consistent so far with CE = 9 CSN = 10
  -----
- However the program in the RF-Nano tutorial in anyonecanbuildrobots link below shows:
  CE = 10 CSN = 9
- The RF-Nano tutorial in embeddedcomputing link below also shows:
  CE = 10 CSN = 9
- Finally, the pdf here (rf-nano board vers. 1.0) :
  https://github.com/emakefun/emakefun-nano-plus/blob/master/RF-Nano/Schem...
  shows:
  CE = 10 CSN = 9
  -----
---------------------------------------------------
