Chokes & Baluns: Schematics

[last updated: 2021-09-04]
go to: ham radio home page

go to: chokes & baluns
-----

Unfinished...
-------------------------------------------------------

• Voltage Baluns:

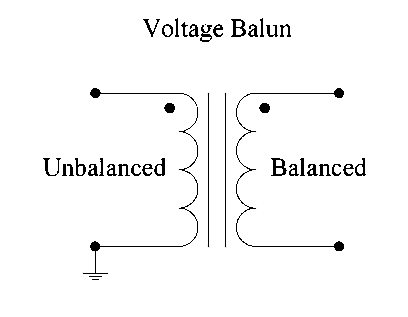

  • 1:1




    from: ref #? - anyFlip?
  • 4:1 Balun: (Voltage Balun, Auto-transformer type)


  from: ref #4

  -------------------------------------------------------

• Guanella Baluns: are listed in places as "a type of Voltage Balun," however this does not seem to be the broad consensus, as there are a lot of schematics shown that are called "current baluns."

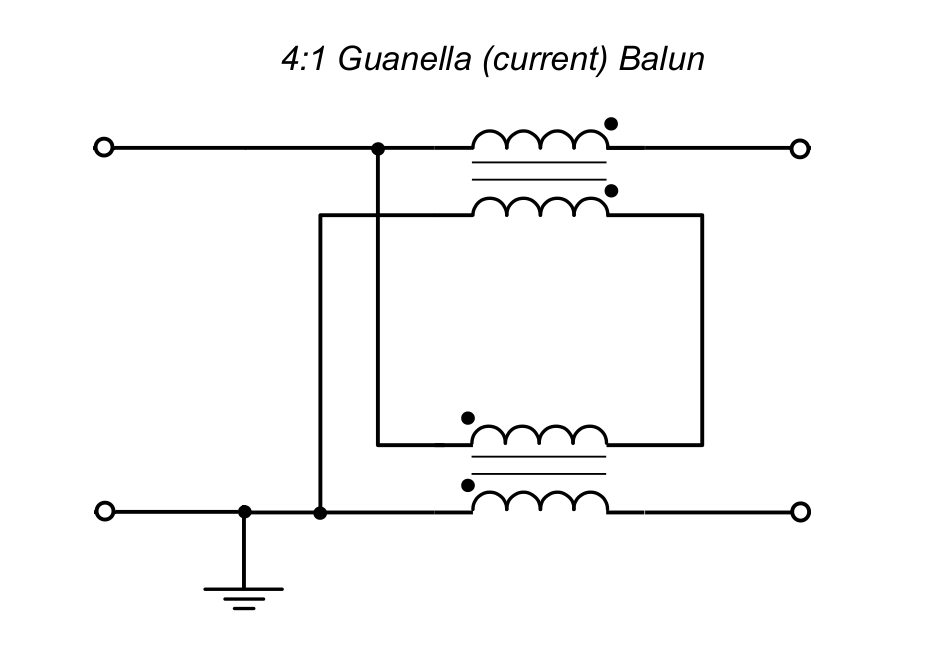

  • Given the info from DJ0IP, I'll only consider dual-core Guanella baluns:
  •


    from: ref #?





    from: ref #?

  -------------------------------------------------------

• Current Baluns:

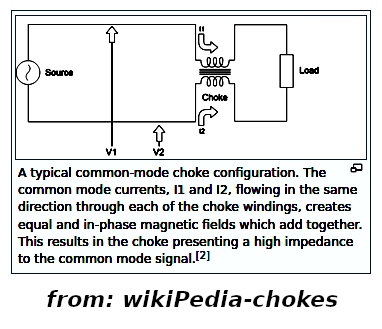

  • Common-mode choke - also called a 1:1 Current Balun:




    from: wikiPedia (ref #3)

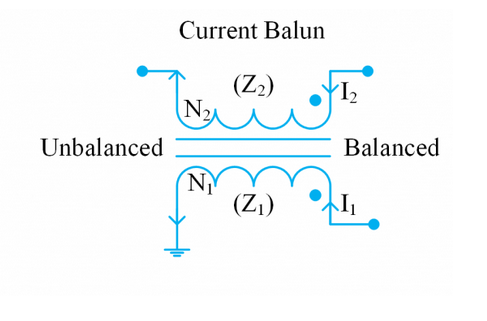

    1:1 Current Balun - from: ref #5

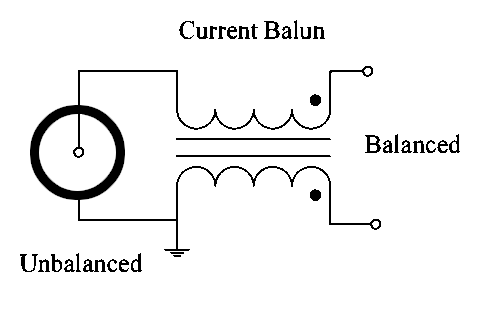

    1:1 Current Balun -
    from: http://anyflip.com/frel/udiq/basic
  • Transmission Line Choke or Coax Choke:
    This is fundamentally a 1:1 current balun, made from a coil of coax, with one coil in the schematic being the shield, and the other the center conductor.


  -------------------------------------------------------

.

.

.
