Relay Module

[last updated: 2023-07-21]
used in: Sprinkler System
go to: ...
https://usa.banggood.com/3pcs-5V-4-Channel-Relay-Module-For-PIC-ARM-DSP-...
https://wiki.keyestudio.com/Ks0058_keyestudio_4-channel_Relay_Module
-----

• Geekcreit from Banggood:




  Geekcreit from Banggood

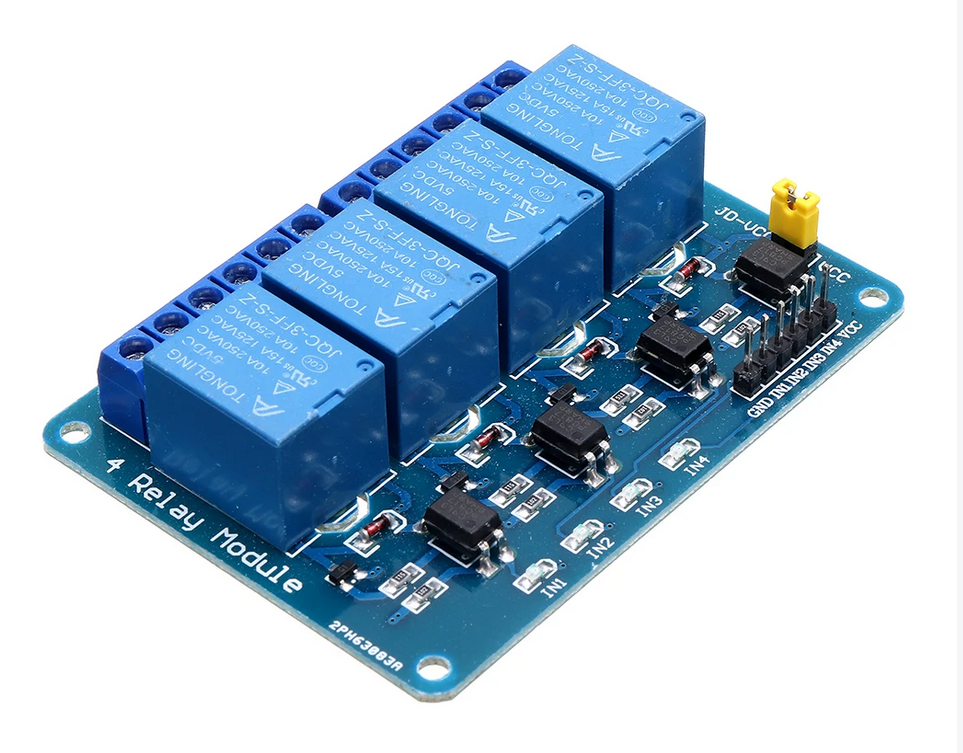

  5v 4ch relay module – Geekcreit – 3pcs 983480 SKU090677 Banggood $8.79

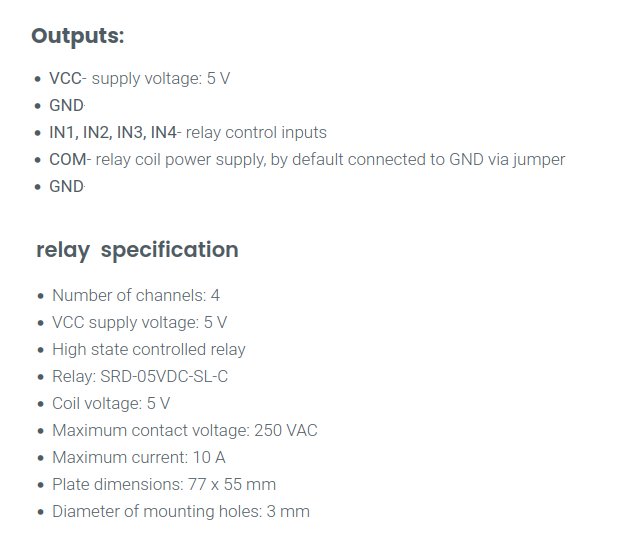

  4@ independent SPDT relays
  Power board (Vcc) with 5v
  Control inputs (In1, In2, In3, In4)
  Reverse Logic, ie. LOW active:
  Apply Gnd to input pins to activate relays
  Some refs say inputs need 20ma, others say 50ma

  ---------------------------------------------------------------------------------

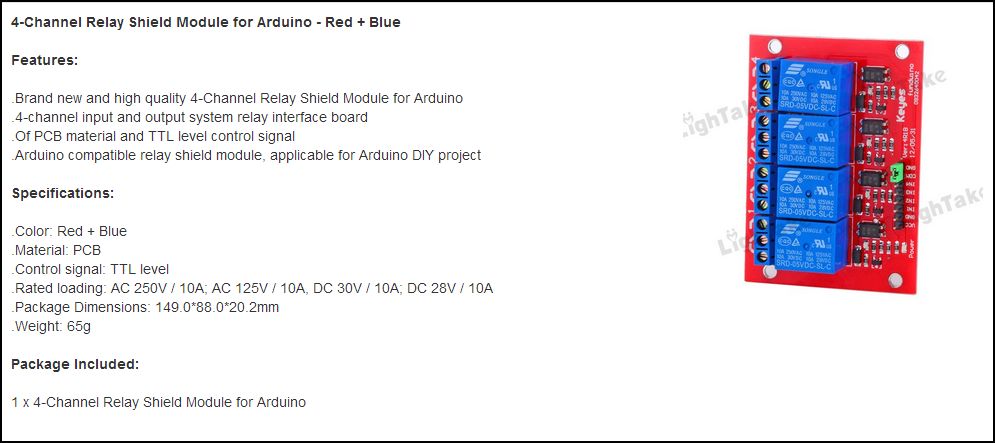

• 4-ch relay board from LighTake:




  from LighTake



  from LighTake

  ---------------------------------------------------------------------------------

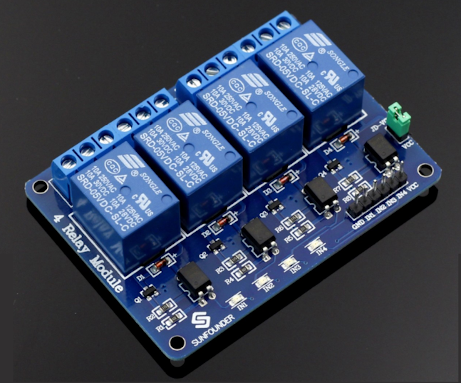

• 4-ch relay board from SunFounder (via RobotShop):



  • RB-Suf-05
  • Seems to be functionally identical to GeekCreit above

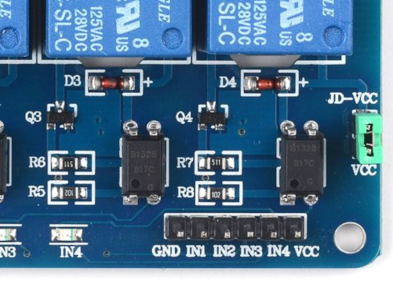

  • Inputs are Reverse Logic, ie. LOW active:

  ---------------------------------------------------------------------------------

  .

  .

  .
