The rPi communicates to the MAX485 module with serial communication (using an onboard UART).
rPi serial port (UART0) uses GPIO14 (Tx) and GPIO15 (Rx)

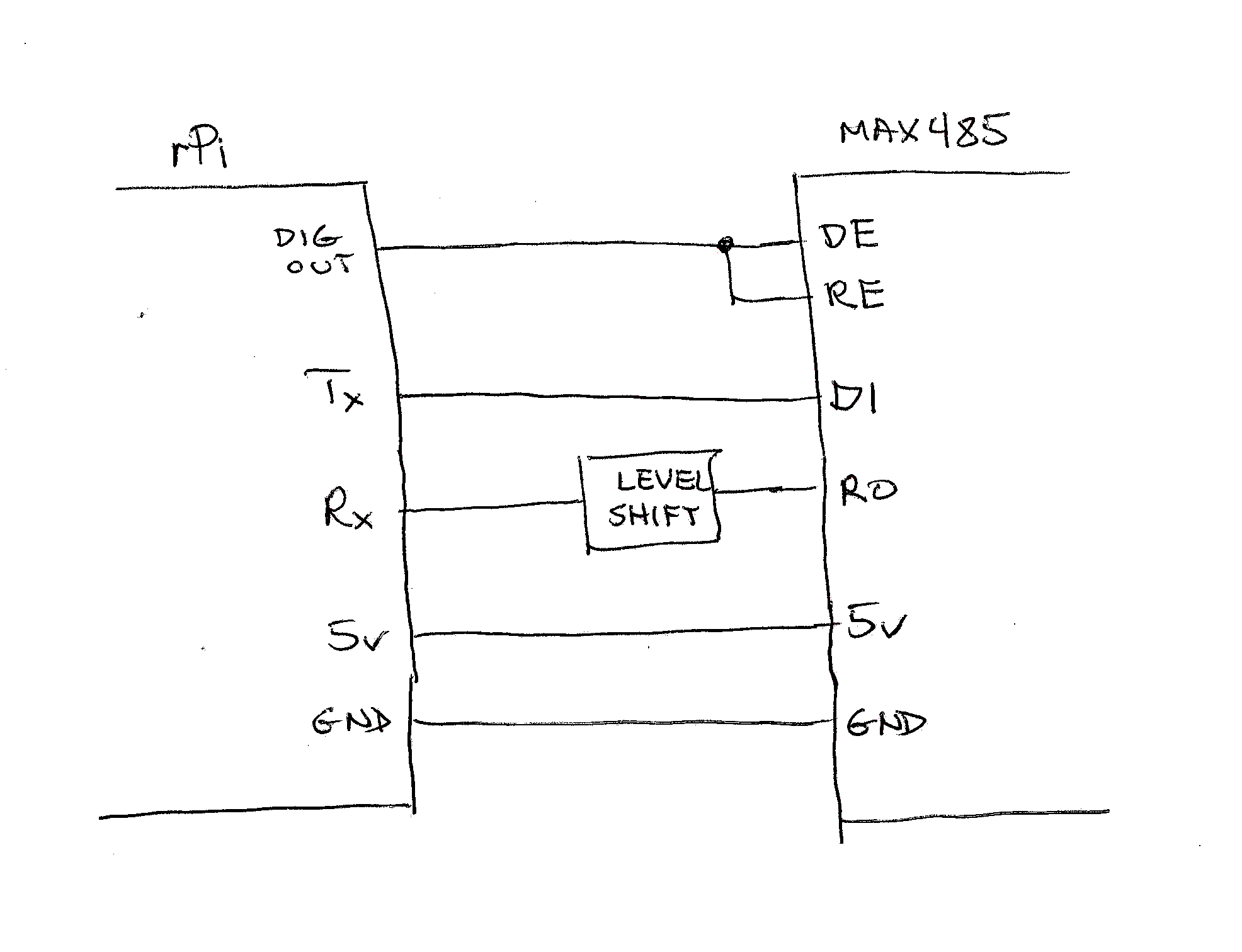

Connections:
There are five connections required between the rPi and the MAX module.
+5v and gnd to power the MAX485
(strictly speaking the MAX could be powered with a separate supply instead of from the rPi,
but the gnd connection between them is still required.)
3 signal connections:
rPi digital output -to- MAX-DE/RE: allow the rPi to control the MAX's enable line (High to Tx, Low to Rx)
rPi-Tx -to- MAX-DI: serial data sent from the rPi to the MAX module
MAX-RO -to- rPi-Rx: serial data received by the MAX485 on its RS485 bus, and sent to the rPi Rx receive pin
The enable control and the rPi-Tx signals can be directly connected to the MAX485,
because the 3.3v output from the rPi will still be read as digital high on the 5v MAX485.
However the 5v RO signal sent from the MAX485 would damage the 3.3v inputs on the rPi if it were directly connected,
so a level shift circuit is required.
