FONA-2 Project Details

[last updated: 2020-03-09]
go to: FONA-1 project page
go to: FONA home page
-----
This version (FONA-2) has currently (Mar-2020) been replaced with FONA-2.5, which uses an Arduino Teensy as Basement Monitor instead of a Nano.
Both FONA-2 & FONA-2.5 interface a FONA breakout (Adafruit 2542) to Arduino Mega 2560.
The FONA-2 uses an Arduino Nano ("basement monitor") as interface to real-world sensors.

FONA breakout (Ada: 2542)

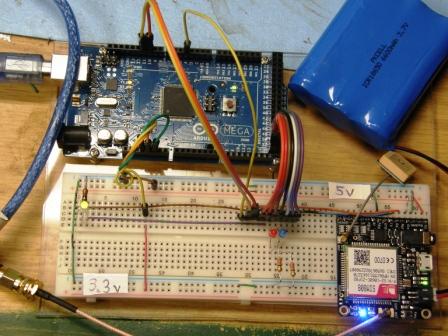

FONA breakout in breadboard

FONA-2 System Diagram

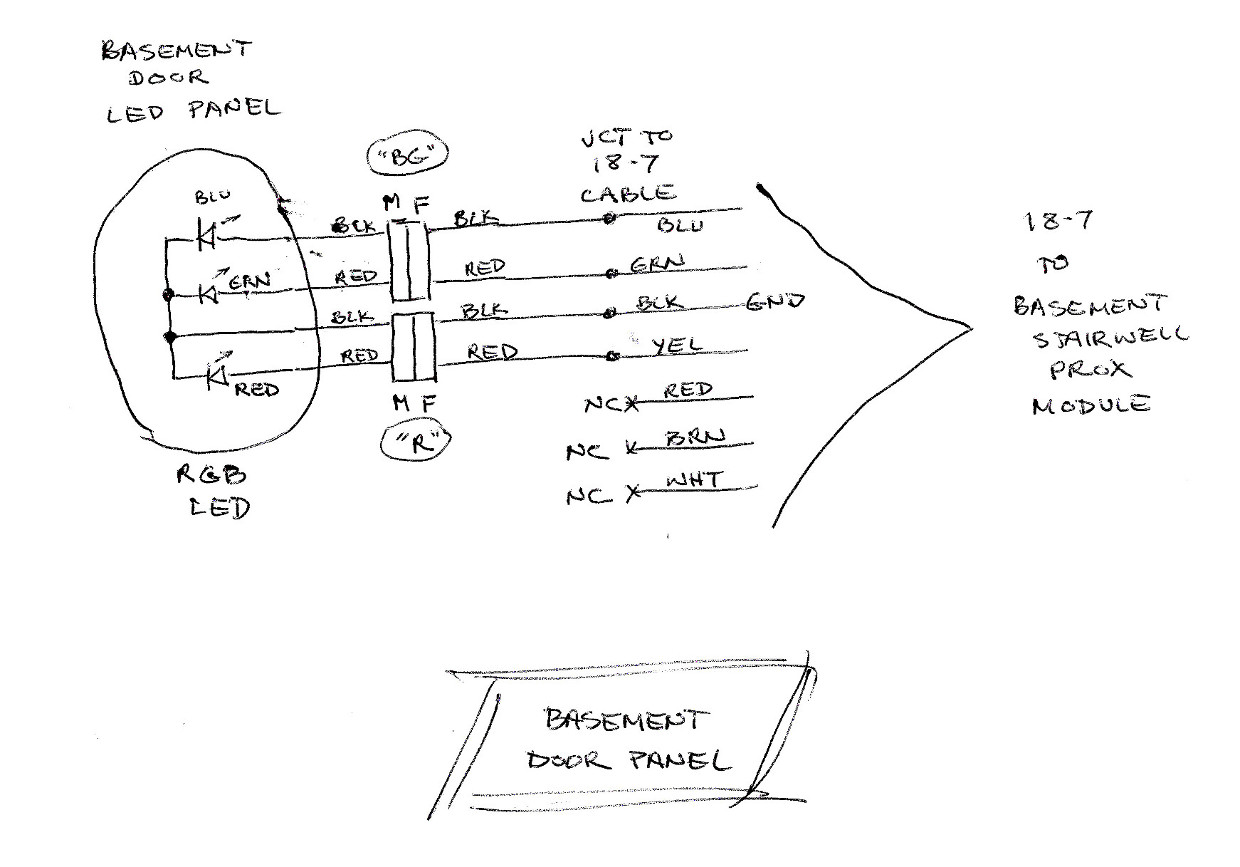

FONA-2 Door LED Panel

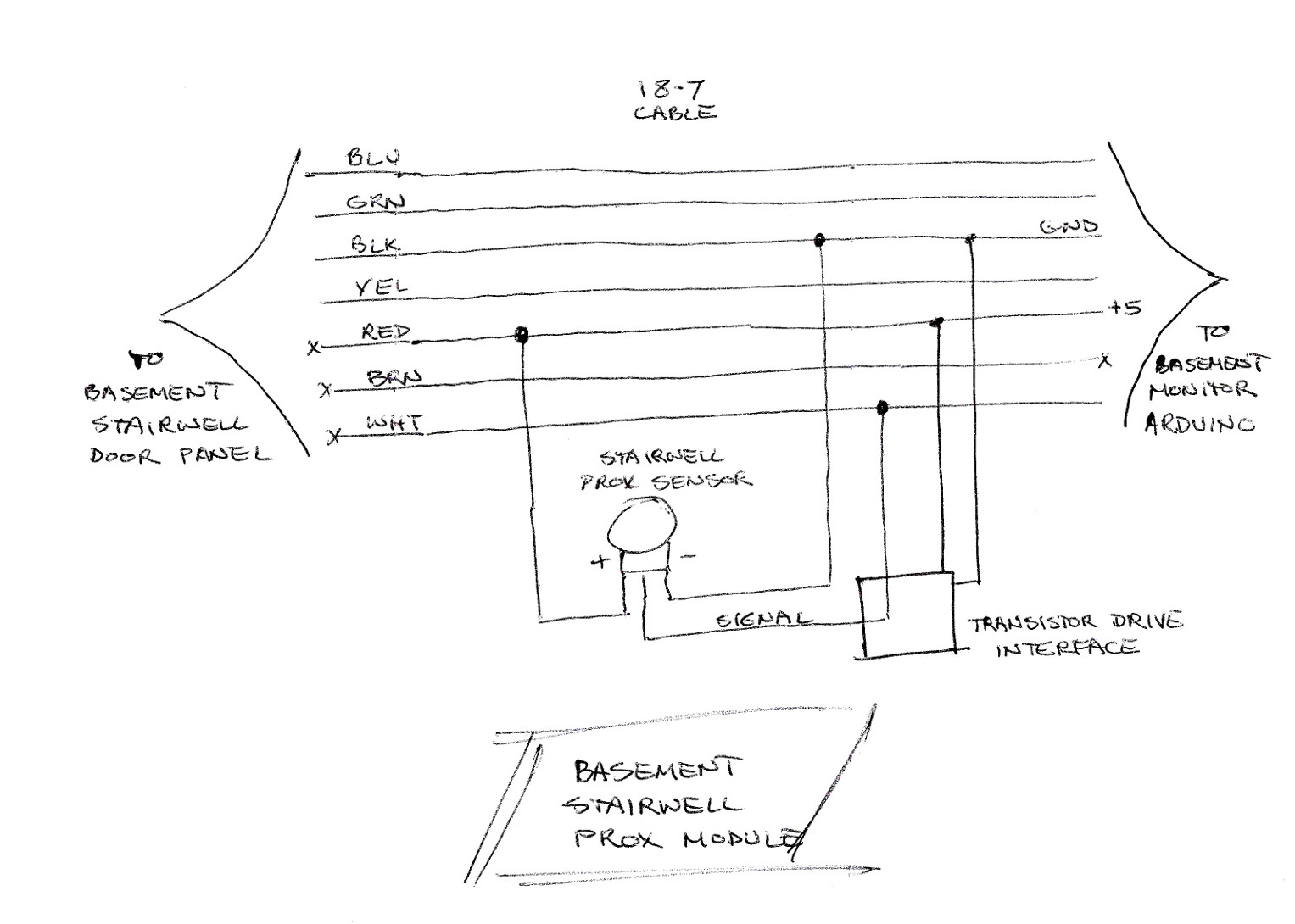

FONA-2 Stair Prox module

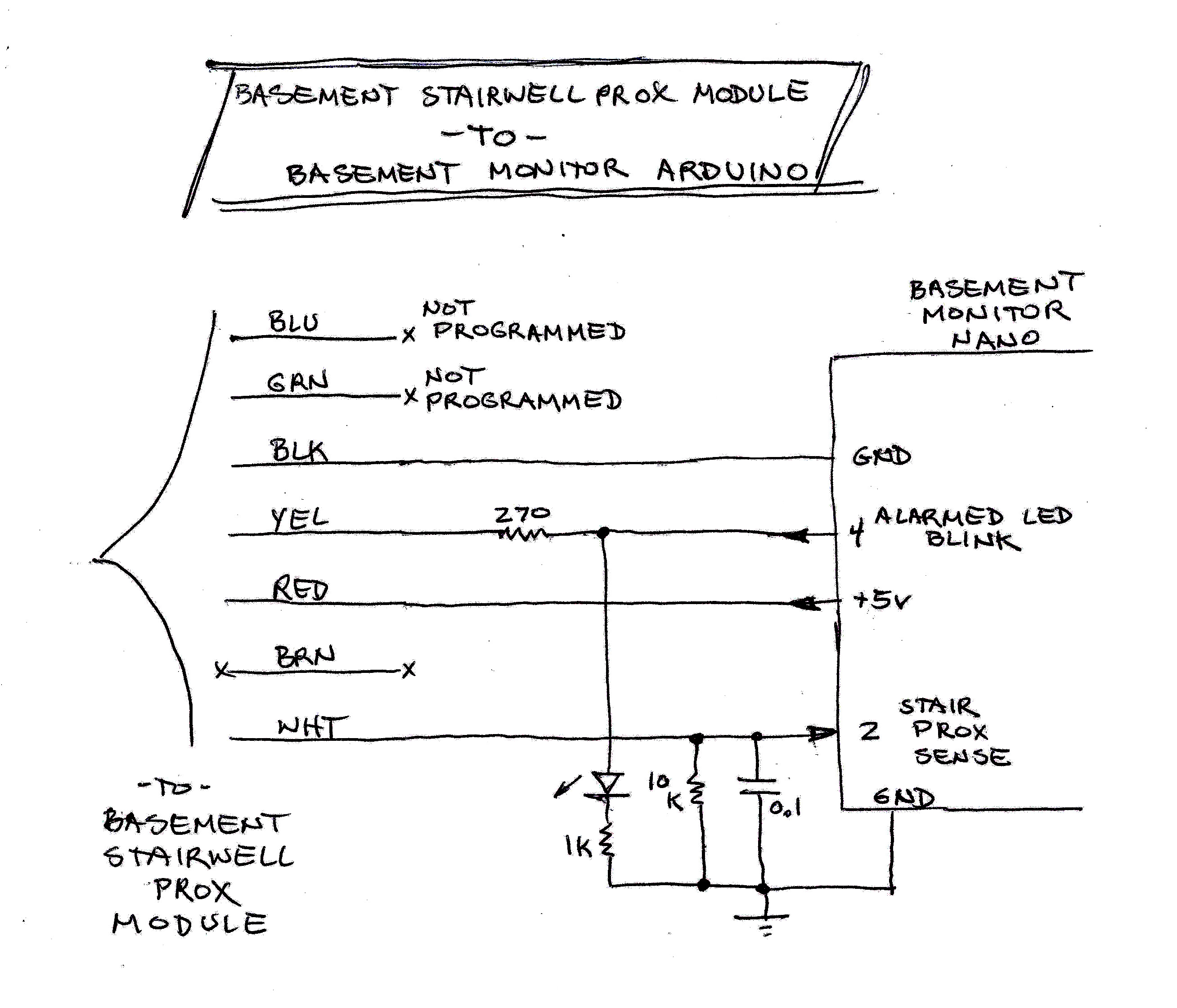

FONA-2 Stair Prox to Basement Monitor

FONA-2 GMC Prox to Basement Monitor

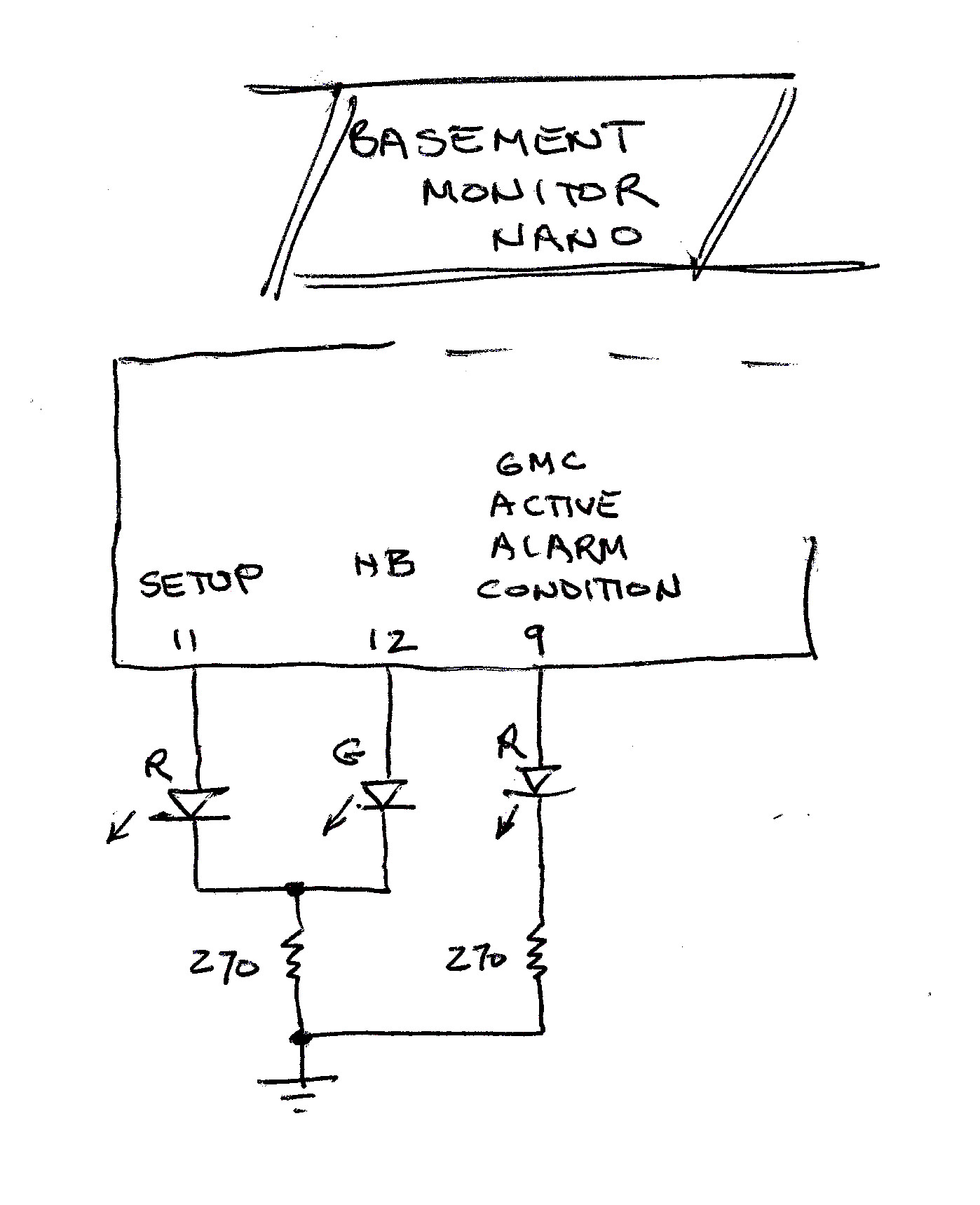

FONA-2 Basement Monitor

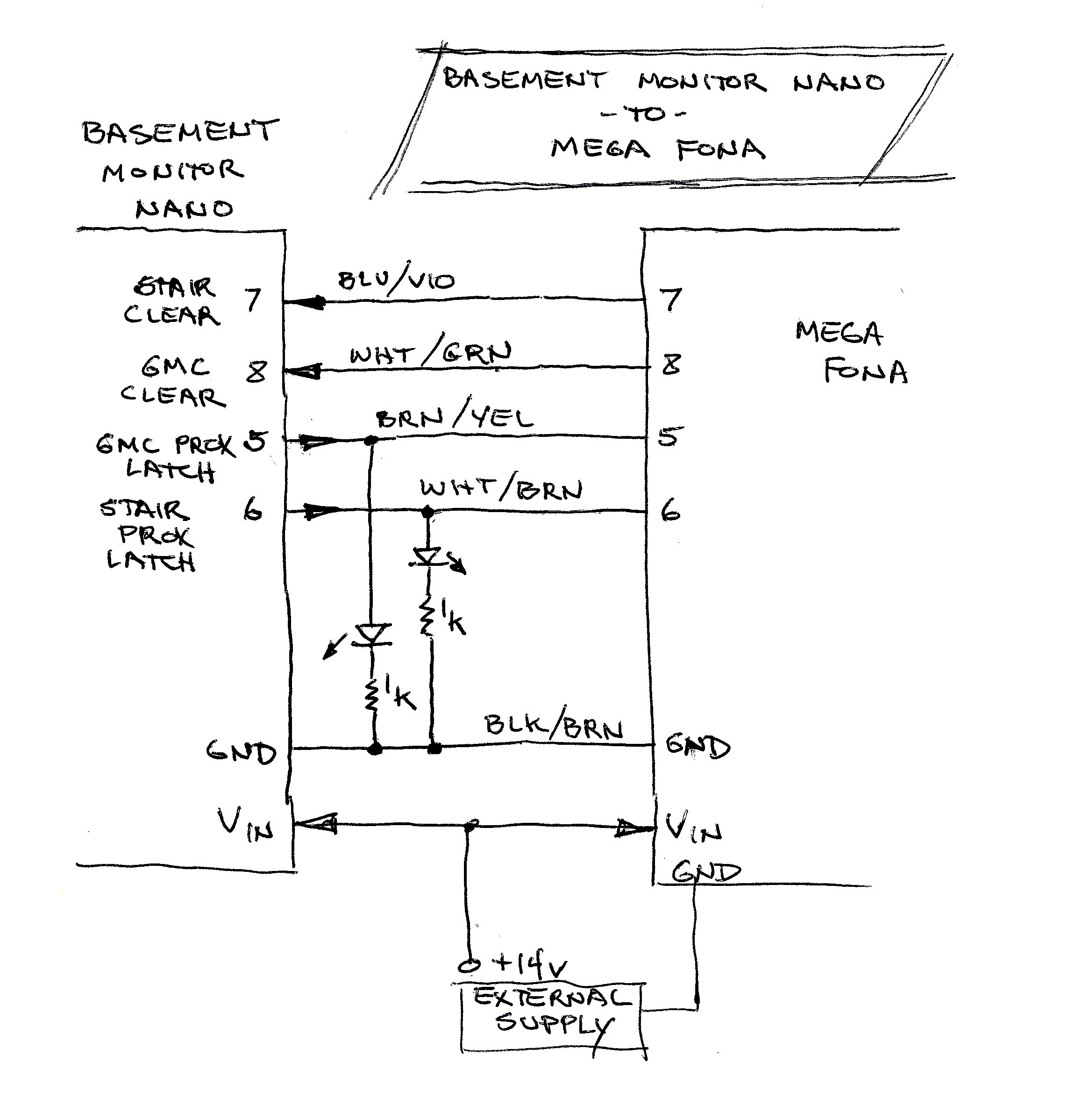

FONA-2 Basement Mon to Mega

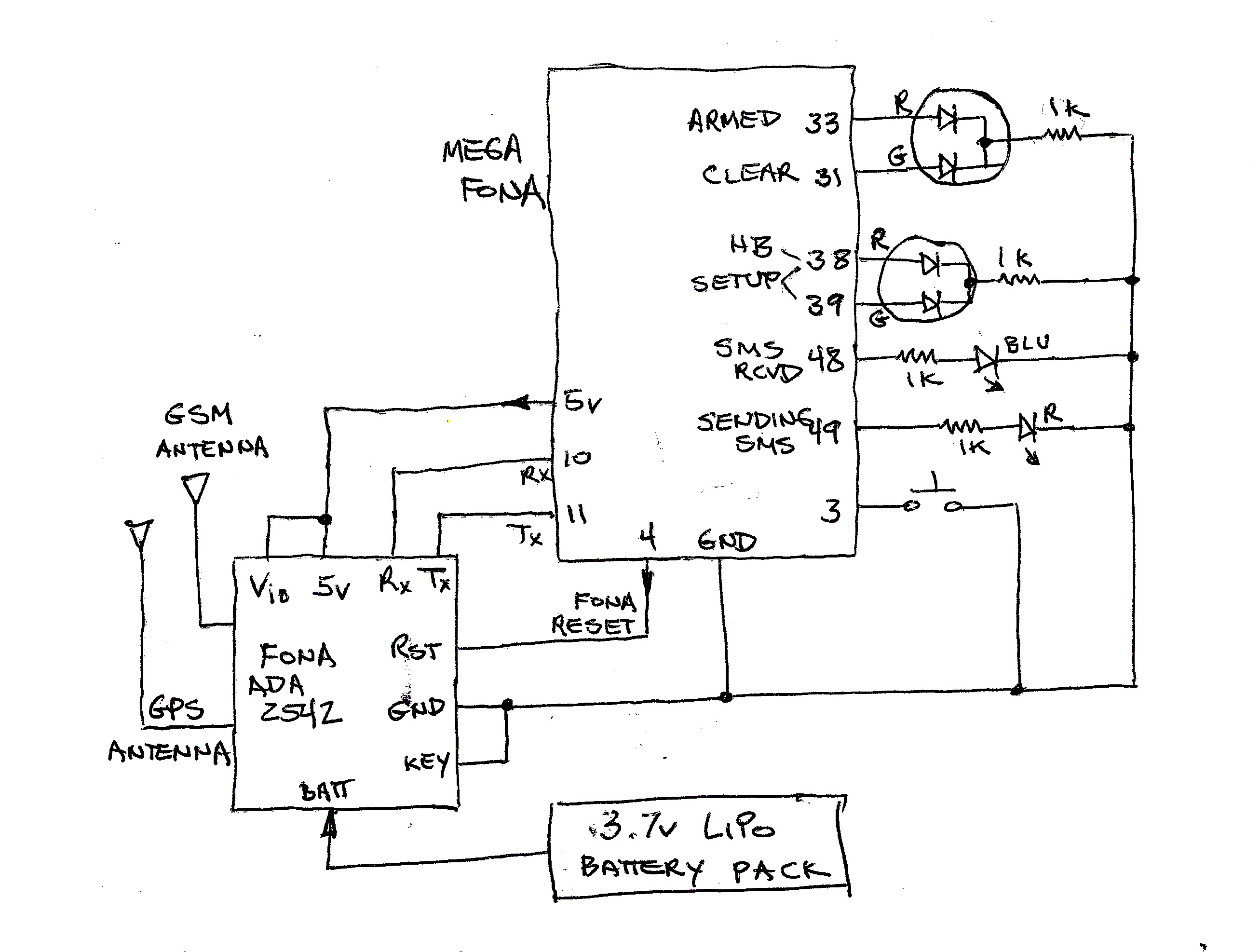

FONA-2 Mega

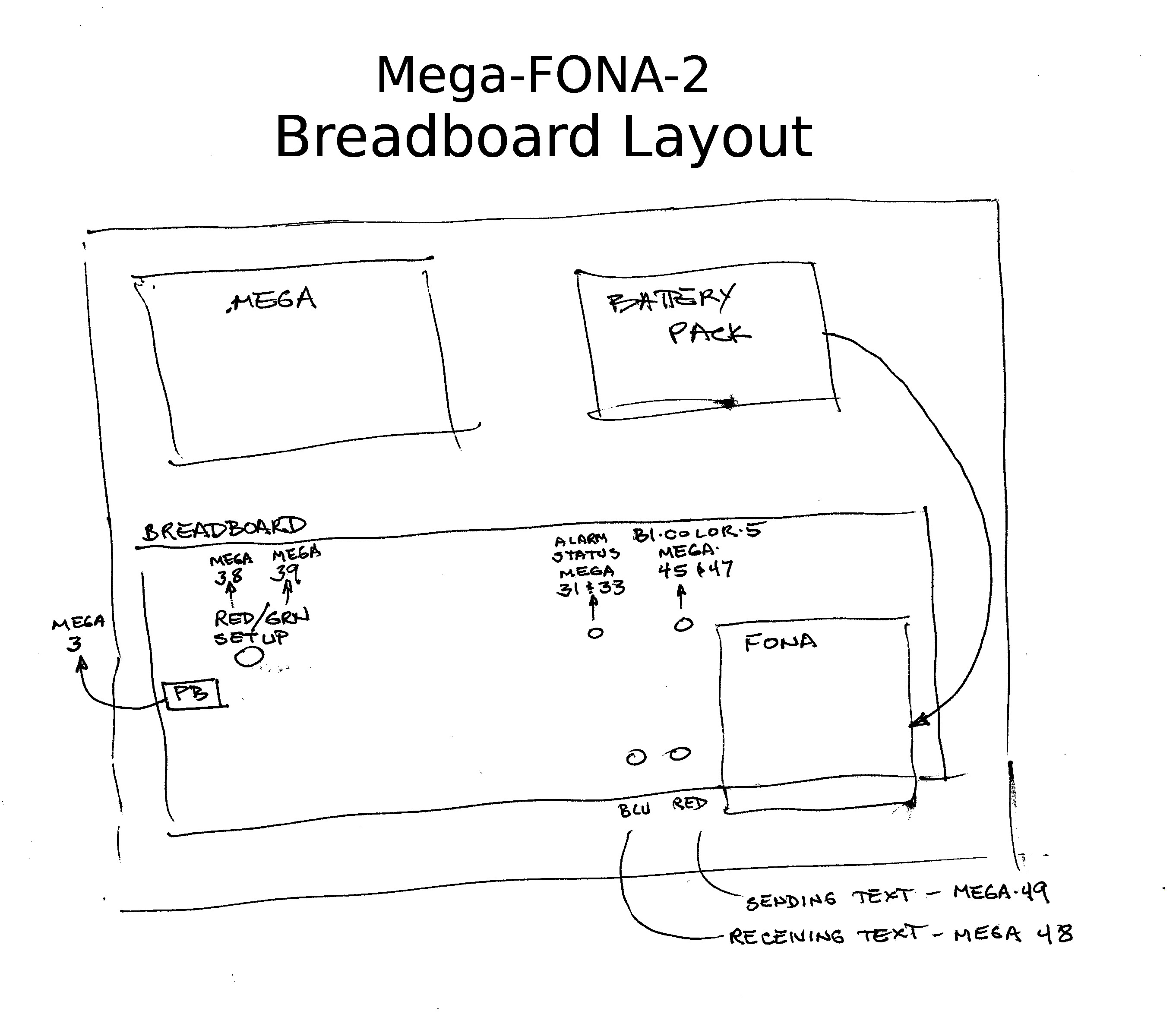

FONA-2 MegaFONA Layout

Programming:
• Mega: MegaFONA06g (not uploaded yet...)
  Arduino Basement Monitor: outsidePanel-03b (not uploaded yet...)
  Program flow

-----
Notes:

• Interesting that, in contrast to FONA-1, NTP time synch works on this one.
• This is a cellular 2G device

.

.

.
